Furniware 1/2 Inch 105-Degree Small Overlay 4D Adjustment Soft Close Concealed Face Frame Hinges - Furniware

105° Soft-Close 4D Adjustment Cabinet Hinge | 1/2" Overlay (Face Frame)

2 Pack
$9.99
Ir directamente a la información del producto
Furniware 1/2 Inch 105-Degree Small Overlay 4D Adjustment Soft Close Concealed Face Frame Hinges - Furniware

105° Soft-Close 4D Adjustment Cabinet Hinge | 1/2" Overlay (Face Frame)

17 reseñas

$9.99
Envío calculado en el pago.
Formas de pago
  • American Express
  • Diners Club
  • Discover
  • JCB
  • Mastercard
  • Visa

Local Stock. Faster Shipping. Better Service.

free shippig for over $30, 100% payment secure, price protection policy
Details
  • Calibrated for 1/2" Face Frame Overlay: Engineered exclusively for American-style face frame cabinets. These premium hinges precisely accommodate a 1/2-inch door overlay, delivering a clean, flush, and professional architectural finish to your kitchen or bathroom renovations.

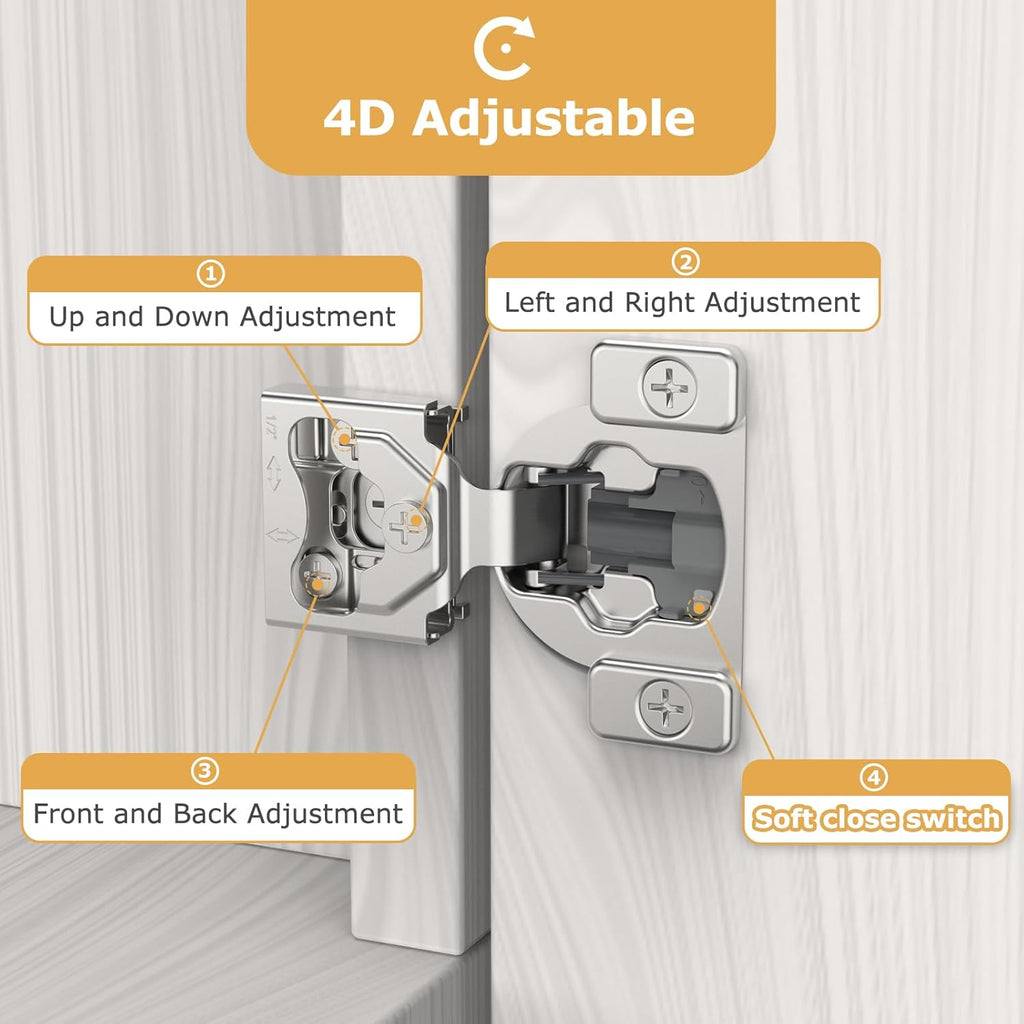

  • Advanced 4D Adjustment & Switchable Damper: Total control at your fingertips. Beyond the standard 3-way (vertical, horizontal, and depth) alignment, these hinges feature a built-in nylon damper with a toggle switch. Easily turn the soft-close function "on" or "off" to customize the closing speed for different door weights.

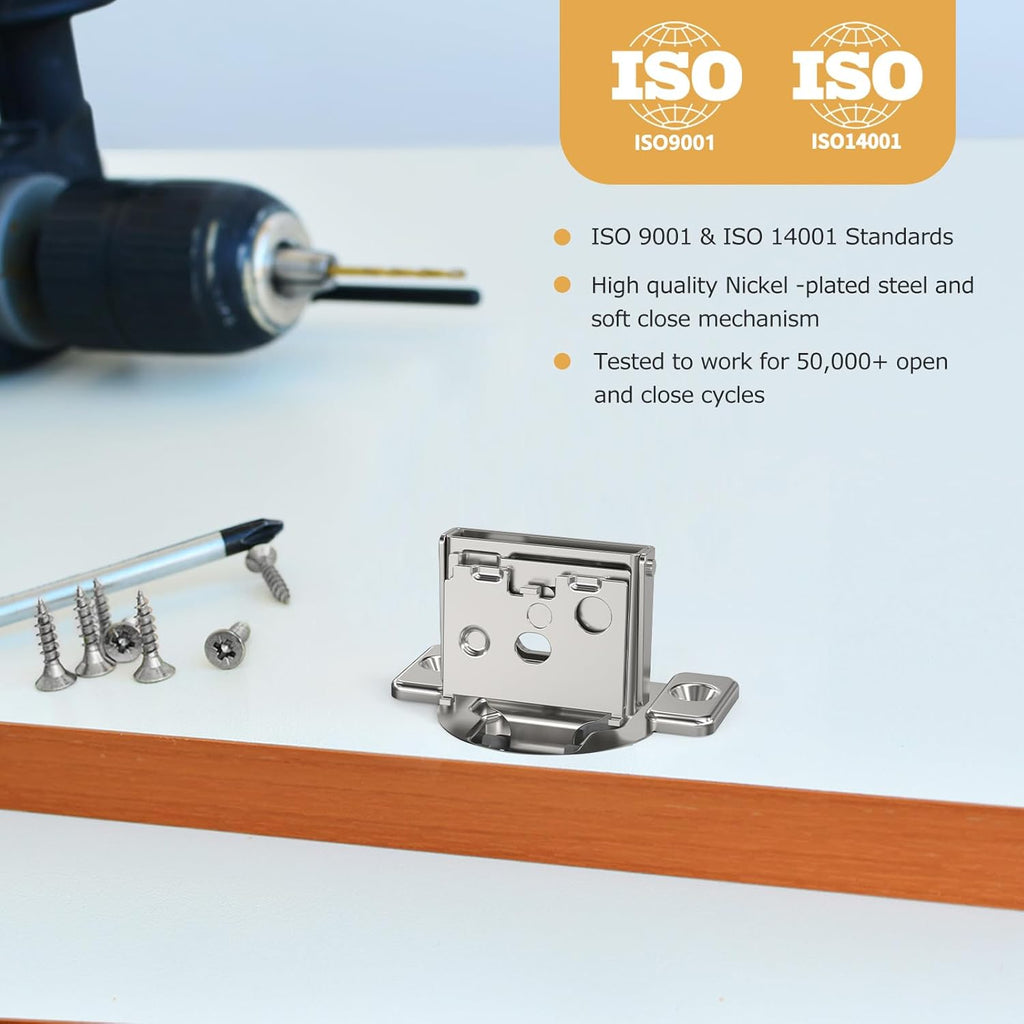

  • Premium Double Electroplating Defense: Built to defy daily kitchen moisture. Masterfully stamped from high-quality steel and treated with an advanced double electroplating process—a robust brass undercoating finished with a sleek nickel plating—ensuring vastly superior rust resistance and structural durability.
  • Whisper-Quiet Finger Protection: When the soft-close switch is engaged, the high-performance integrated damper seamlessly catches the cabinet door mid-motion. It slows down the closing speed to a whisper-quiet, slam-free halt, eliminating harsh noise and protecting fingers from accidental pinches.

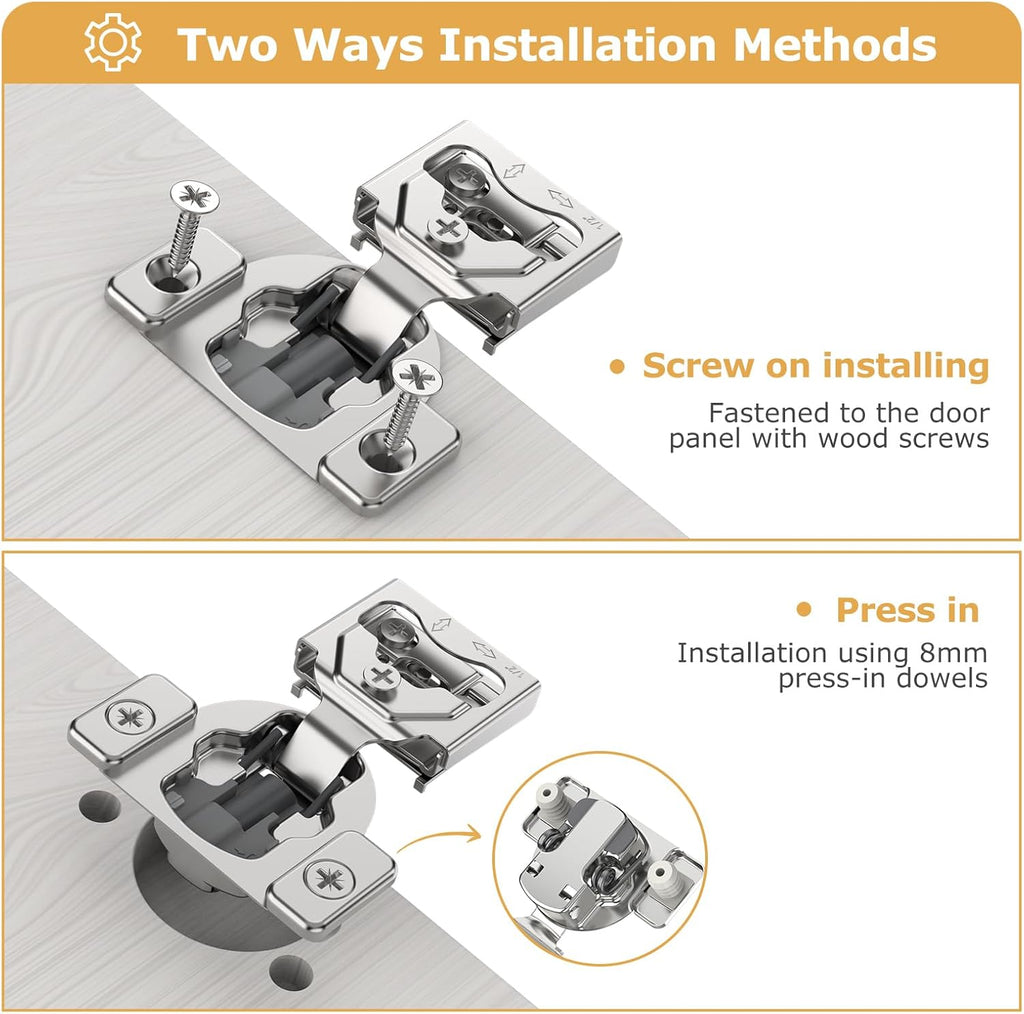

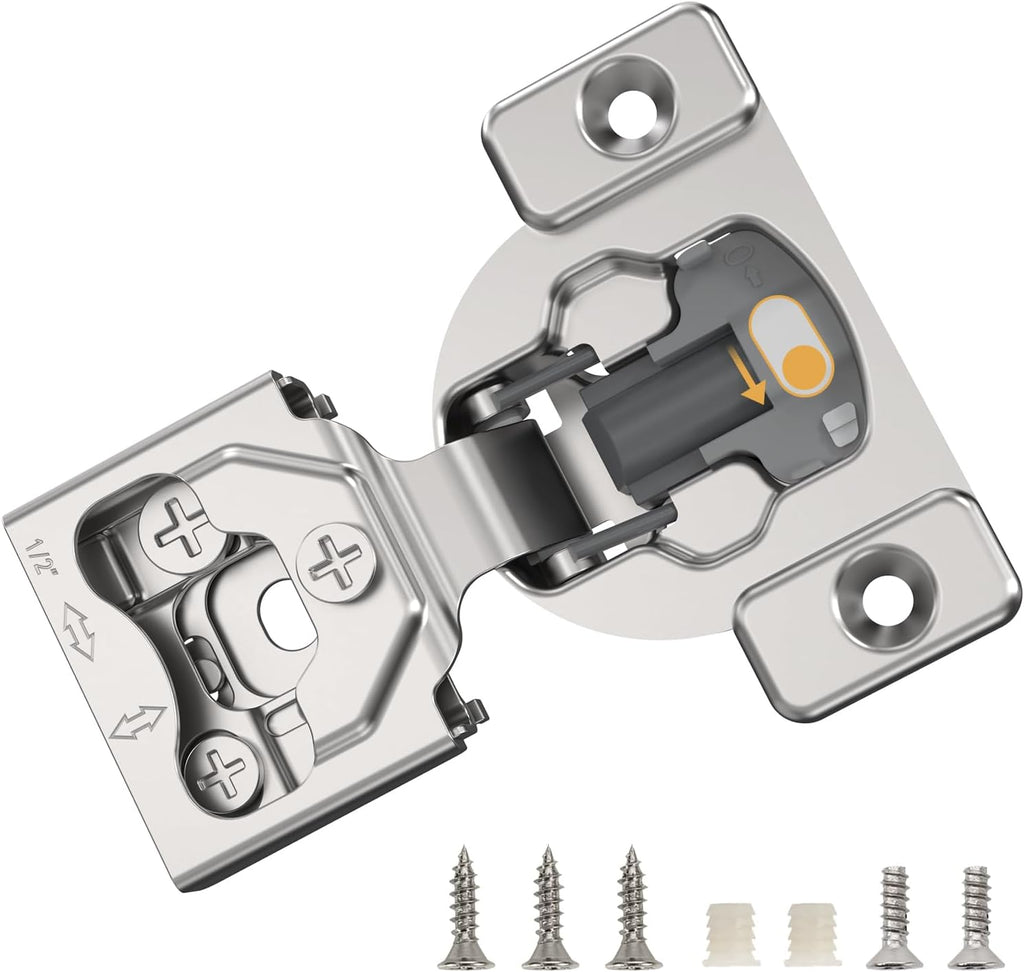

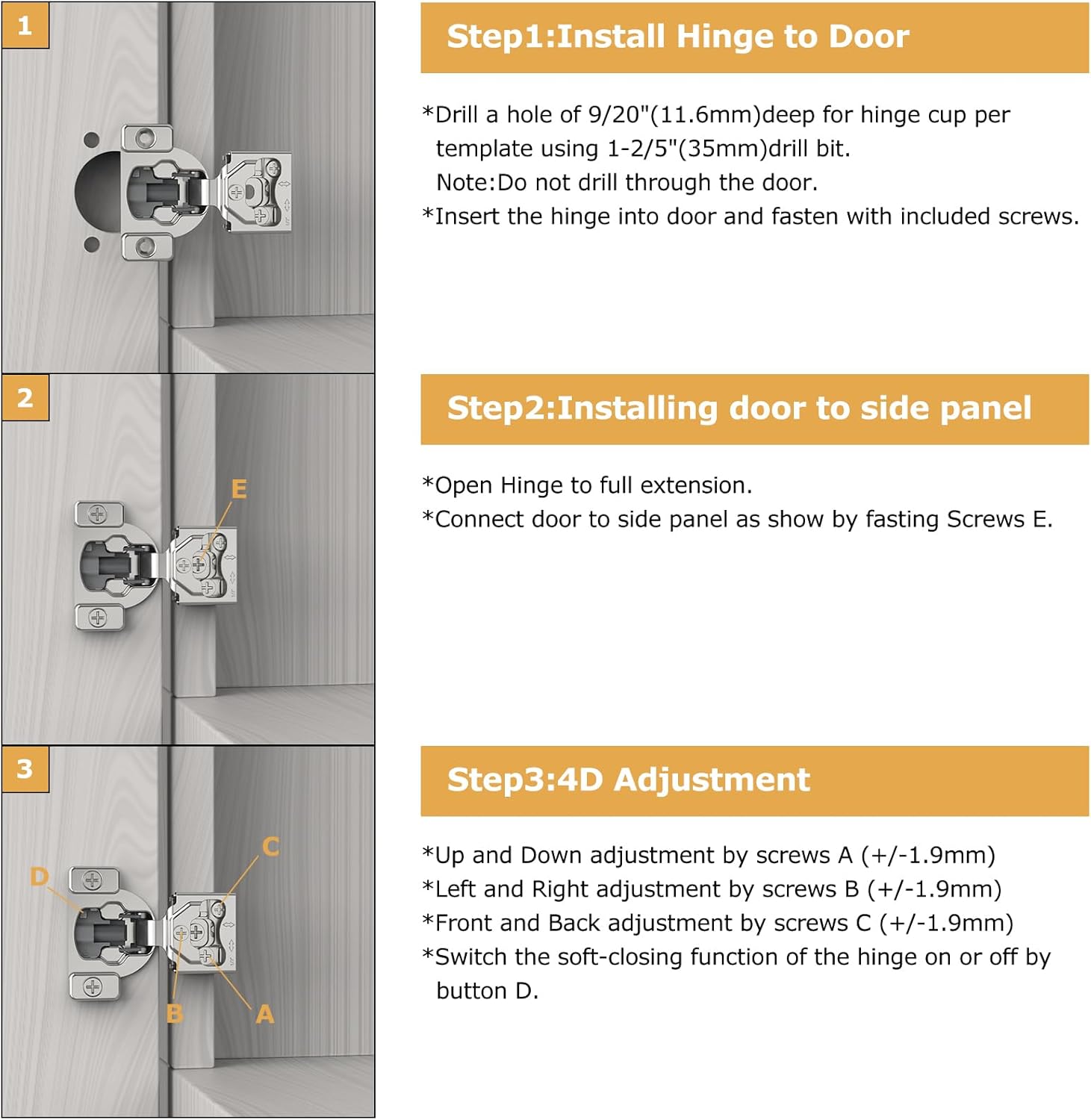

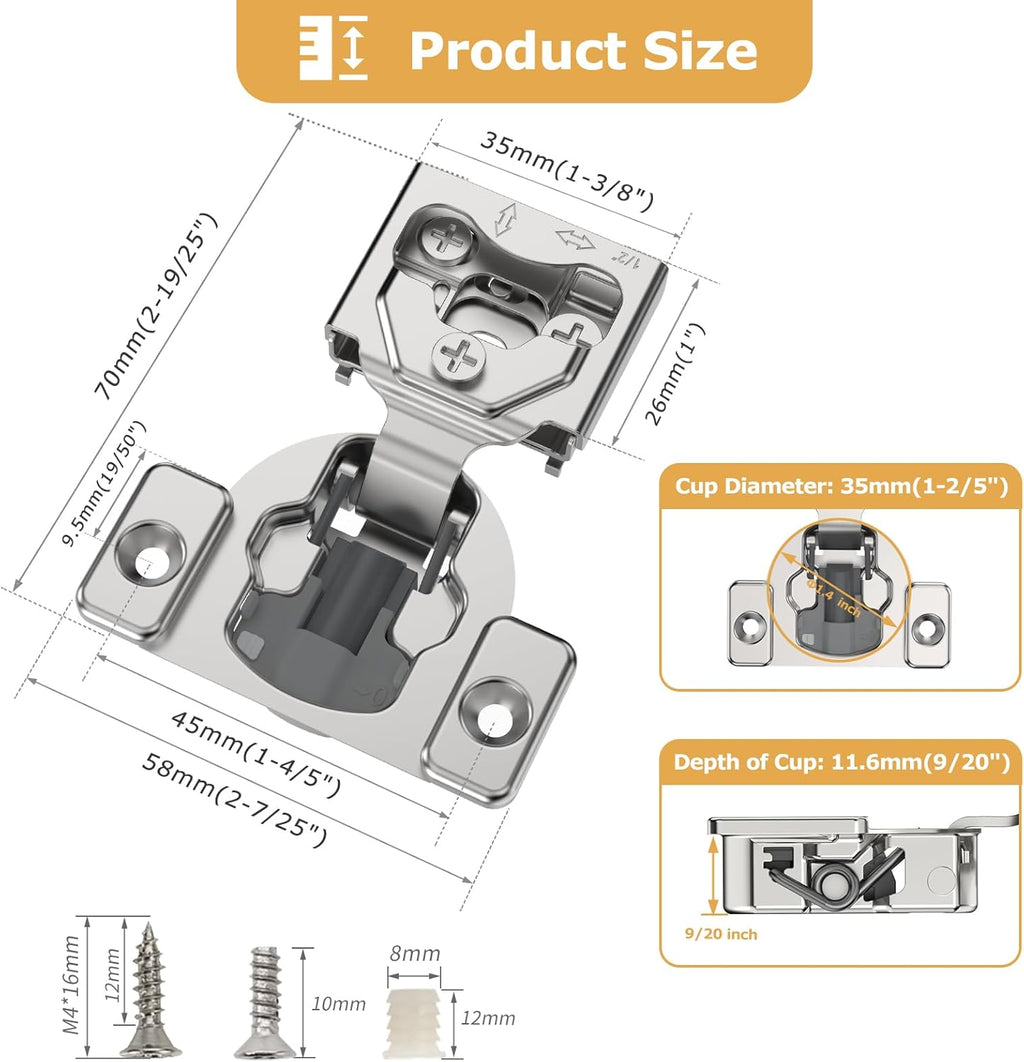

  • Exact Fit & 105° Opening Angle (How to Measure): Engineered with a smooth 105-degree opening angle for optimal daily access. Features a standard 35mm cup diameter, 11.6mm cup depth, and 45mm hole spacing. Crucial Sizing Note: To confirm your fit, measure how much the cabinet door overlaps the front wooden frame (not the cabinet side panel). Includes matching self-tapping screws and 2 easy-on dowels for a secure setup.

Materials

We prioritize quality in every detail, selecting premium metals and finishes that ensure durability, reliability, and timeless design.

Shipping
Shipping Methods & Delivery Times

We offer local shipping to the US, UK, and Europe. Shipping options and delivery times vary by destination.

🇺🇸 US & 🇬🇧 UK

Orders under $30 USD

  • Standard Shipping: $5.99 — 2–5 business days
  • Expedited Shipping: $9.99 — 1–3 business days

Orders $30 USD and over

  • Standard Shipping: FREE — 2–5 business days
  • Expedited Shipping: $7.99 — 1–3 business days
🇪🇺 Europe

Orders under $30 USD

  • Standard Shipping: $5.99 — 5–10 business days
  • Expedited Shipping: $9.99 — 3–5 business days

Orders $30 USD and over

  • Standard Shipping: FREE — 5–10 business days
  • Expedited Shipping: $7.99 — 3–5 business days
Delivery Time

Estimated Delivery Time = Handling Time + Transit Time

Transit times are estimates and may vary depending on the destination, carrier delays, holidays, customs clearance, or weather conditions.

Business days are Monday through Friday, excluding public holidays.

For the most accurate delivery estimate, please refer to the shipping options available at checkout.

  • 5 stars: 14 (82%)
  • 4 stars: 3 (18%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
B
BrianB
So far so good

Good hinges. I had to replace a bunch of old kitchen cabinet hinges and these did the trick.

D
Dustin Robison
Perfect fit and quality product

I'm an HS shop teacher and these fit the students project perfectly. We had a hard time finding these at local stores. Great price for the quantity. Highly recommend

C
Craig M.
Awesome

Love it. Ez to install and closes smoothly.

S
Sharolyn Waters
Love them

Love them. I do wish the screws were longer.

S
Sommer Hart
Worked well

Worked well

C
Christine Gorsline
Perfect fit.

Works exactly as described. I had to replace the hinges on a cabinet door because the door was cut to the wrong dimensions. I used these to replace a 3/4" overhang hinge, and they fit perfect - but more importantly had the necessary overhang to fix my issue.

g
grandpa easy
Will buy again

Fit , finish and operation were fine . Would order again.

M
Mitch McCormick
Soft close works well

We got new kitchen cabinets installed and the hinges weren't soft close. These were the correct fit for our cabinets and seem to be holding up well. Have a few left over in case any go bad.

M
Missy S.
Soft Close Cabinet Hinge Reco

Exactly what I was hoping for. Holes matched perfectly with non-soft close hinges from before.

K
KF
Measure

Great upgrade to my cabinets.

A
Amazon Customer
Great value

Easy install.

J
Jeffy Platinum
These work well in certain situations

I did a kitchen remodel last year and I put face frames on the existing cabinet boxes in the kitchen. I bought a bunch of 1+1/2 inch overlays for the doors. These are great for when you realize that your house was built in 1970 and you don't have 1.5 inches on one side.

E
Edwin Soto
Good cabinet hardware

We change the hardware on all of our cabinet it was upgrade from scratch, redrilling new holes ! But great product, recommend to anyone replacing old hardware or new upgrade !

D
David
Works great

Used to make door for unused cabinet space. Very smooth self-closing hinge

E
Elliot Boldt
Perfect For Application

These were purchased for a kitchen cabinet door replacement.Shipping / Boxing- All hinges were paired in individual packages of two in the main box with an associated smaller bag of screws inside of those. This made it very convenient for the smaller doors.Ease of Installation- Hinges matched up well with the Kreg Jig kit for cabinet door hinges. Each hinge aligned perfect with the pattern that this required.Hanging / Adjusting the door- This part of the process was a breeze with these. I found measuring this distance to the top hinge + the 1/4 inch overlay got me almost exactly where i needed to be each time vertically. These hinges do have the ability to move the door in 6 directions (Up, Down, Left, Right, In and Out). This allowed me to easily correct the gap between each door. One part I found very helpful was these hinges have tabs on them to align with the door frame. This allowed precise alignment in and out every time.Soft Close- Works very well from varying different distances of close.Overall- Hinges work very well. Would recommend to anyone attempting a door replacement or replacing worn out hinges.

G
G. Nichols
Perfect Replacement

How much attention do you give to your cabinet hinges? Likely not much ---until you have to replace one or a few. It turns out that there are SO MANY types and varieties available. After much searching, this was very close to identically matching our existing hinges which just seem to be aging after years of use. After installing two of them, I am confident in ordering additional ones because they were perfect replacements.

L
Leah S
Perfect fit for the 1/4inch overlay.

No adjustments needed after easily installing the 1/4inch overlay hinge. Came with all necessary hardware to install it and has the desired soft-close feature I wanted. I only used one slow close hinge on each cabinet door (with one regular hinge) and it offers plenty of soft close for my liking. Lastly, Lowe’s didn’t even sell this in store and it was cheaper to buy here anyway.
